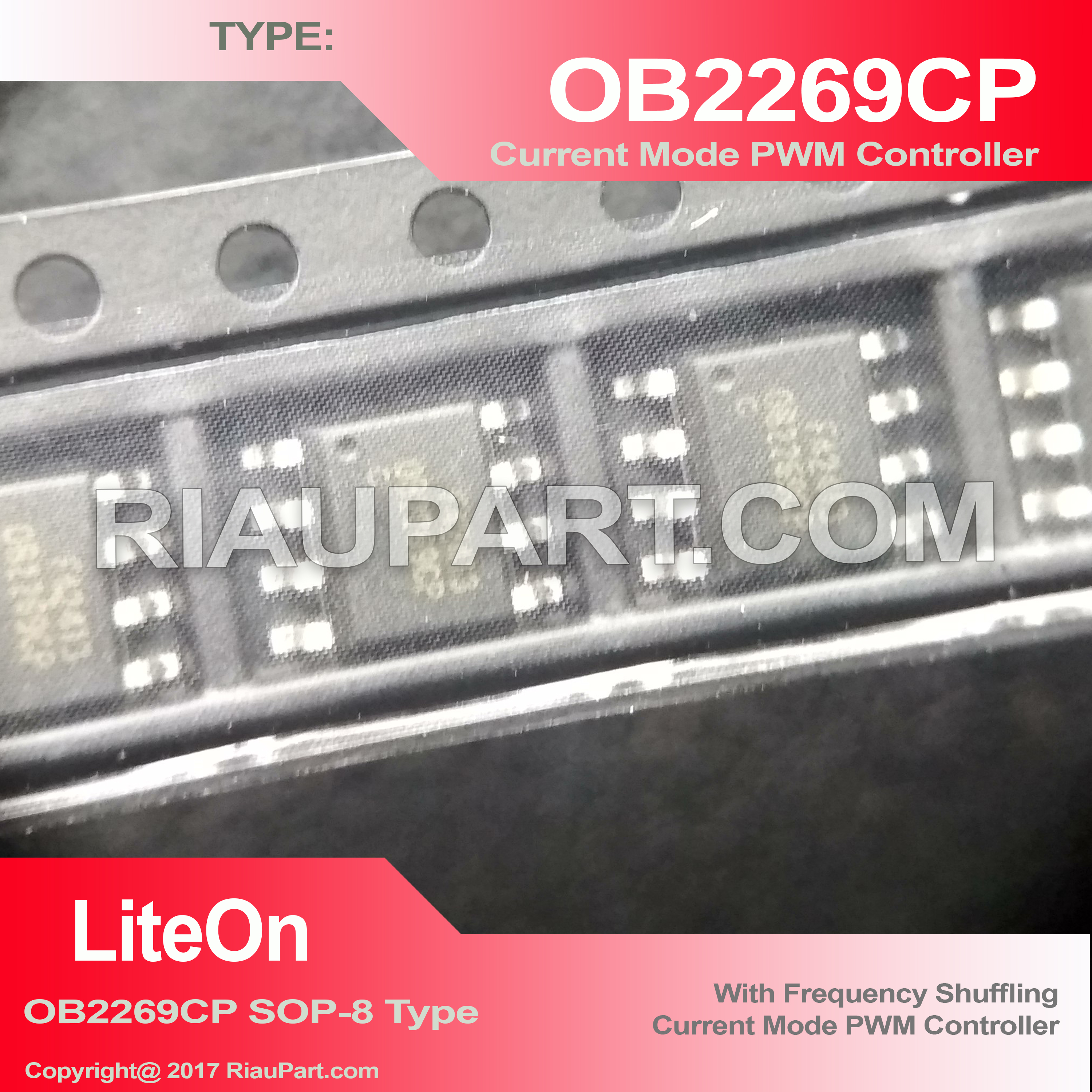

IC OB2269CP OB2269 OB2268CP OB2268
SERING DIGUNAKAN PADA RANGKAIAN POWER SUPPLY / REGULATOR TV POLYTRON LED
GENERAL DESCRIPTION:
OB2268/9 is a highly integrated current mode PW Mcontrol IC optimized for high performance, low standby power and cost effective offline flyback converter applications in above 20W power level. PWM switching frequency at normal operation is externally programmable and trimmed to tight range. At no load or light load condition, the IC operates in extended ‘burst mode’ to minimize switching loss. Lower standby power and higher conversion efficiency is thus achieved. VDD low startup current and low operating current contribute to a reliable power on startup design with OB2268/9. A large value resistor could thus be used in the startup circuit to minimize the standby power.
The internal slope compensation improves system large signal stability and reduces the possible subharmonic oscillation at high PWM duty cycle output. Leading-edge blanking on current sense input removes the signal glitch due to snubber circuit diode reverse recovery. and greatly reduces the external component count and system cost in the design. OB2268/9 offers complete protection coverage with automatic self-recovery feature including Cycle-byCycle current limiting (OCP), over load protection (OLP), over temperature protection (OTP), VDD over voltage protection (OVP) and under voltage lockout (UVLO).
The Gate-drive output is clamped to maximum 18V to protect the power MOSFET. Excellent EMI performance is achieved with OnBright proprietary frequency shuffling technique (OB2269 only) together with soft switching control at the totem pole gate drive output. The tone energy at below 20KHZ is minimized in operation. Consequently, audio noise performance is greatly improved.
